Cone Crusher Wear Parts
Mantle & Concave
Wear liners that define the crushing chamber of your cone crusher
Overview
Mantle and concave liners set the crushing chamber profile that determines your product size and throughput. We manufacture and advise on manganese-steel mantle and concave sets profiled to standard and short-head chamber geometries, with zinc or resin backing compatibility.
Key Features
- Profile-matched to OEM chamber geometry
- Balanced wear pattern for even chamber life
- Available in coarse, medium & fine profiles
- Backed by dimensional inspection report
Typical Applications

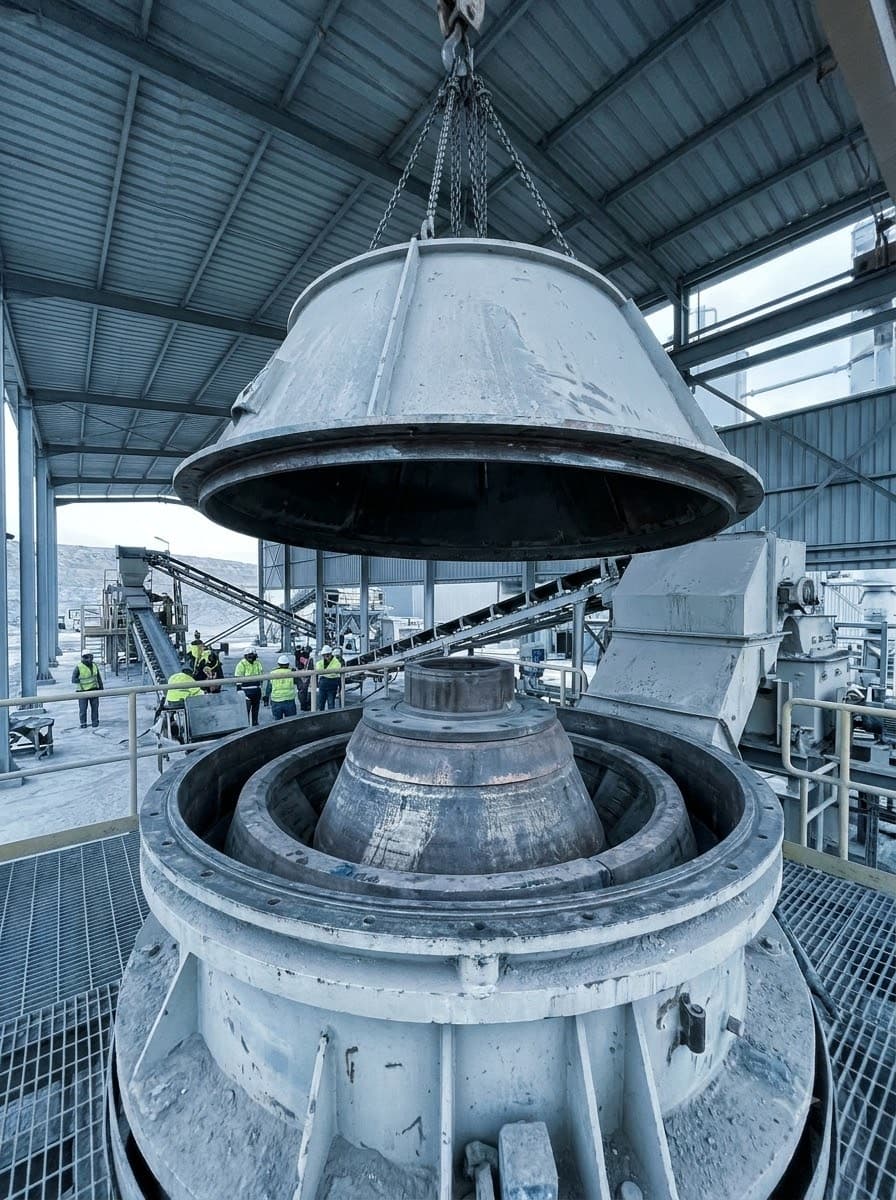

Cone crushers (standard & short-head)Secondary & tertiary crushing stagesMining & mineral processing plants
Specifications
- Base Alloy
- High Manganese Steel
- Chamber Profile
- Standard / Short-head, OEM matched
- Backing Compatibility
- Zinc or resin backing
- Sets
- Supplied matched mantle + concave pairs
Material Options
- Mn13Cr2
- Mn18Cr2
- Mn22Cr2
Need This Part?
Send your equipment model and requirement — we'll advise on the right fit.
